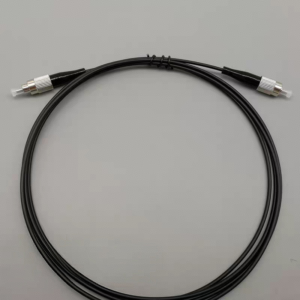

Square Core Fiber Optic Patch Cord
Square Core Fiber Patch Cord - Optimized for Laser and Sensing Applications

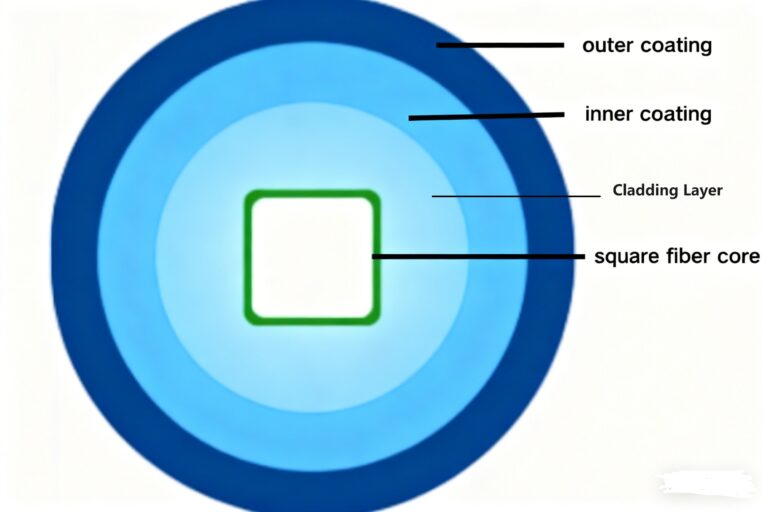

The Square Core Optical Fiber Patch Cord is engineered for professionals requiring high-precision beam delivery and superior power handling. Unlike traditional circular fibers, the square core geometry offers advantages in certain laser coupling and homogenization applications, making it a key component in scientific research, medical devices, and industrial laser systems.
Key Technical Details
-CORE SPECIFICATIONS: Available in 50x50μm, 100x100μm, 200x200μm, 300x300μm, 400x400μm square pure silica core; 900-1100nm operating wavelength; NA0.12/0.22 for efficient light coupling
-VERSATILE CONNECTORS: Compatible with FC/PC, SMA905, ST connectors.Each patch cord is manufactured with precision ferrules and polished to a high standard (e.g., FC/PC or SMA905) to guarantee low insertion loss and high back reflection protection.
-Optical Performance: Exceptional throughput in the Near-Infrared (NIR) spectrum (400-2300 nm), offering reliable performance for high-intensity light transfer.
Application Scenarios
-• Astronomical spectroscopy and imaging systems,• Industrial automation and control equipment• Optical test and measurement instruments
-• Laser diode/LED coupling applications• Telecommunication and data transmission systems• Laser Cleaning
-• Custom optical setups requiring uniform beam profiles
Customization Service
We offer flexible customization options to meet your specific needs: • Custom core dimensions beyond standard sizes • Alternative connector types (LC, SC, etc.) • Custom cable lengths (1m, 2m, 5m, 10m, or other lengths) • Specialized jacket materials for high-temperature or high-power applications • OEM/ODM services available
