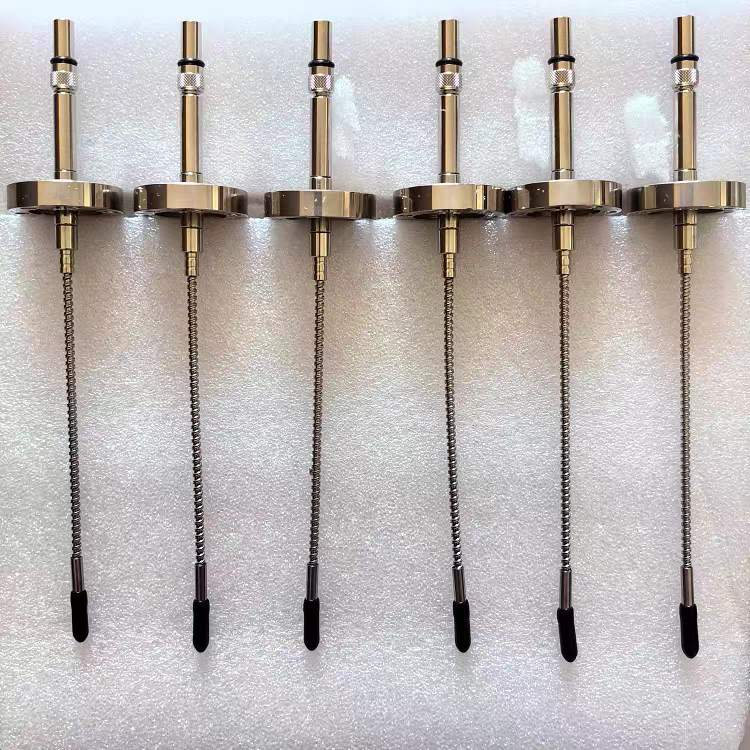

Vacuum Fiber Optic Feedthrough – UHV/HV Compatible, CF/KF Flange Options, Customizable Fiber Core & Connectors (FC/PC, FC/APC, SMA905)
Reliable Signal Transmission for Vacuum Environments Our Custom Vacuum Fiber Optic Feedthroughs provide a hermetic seal for optical signals entering or exiting a vacuum chamber. Whether you are conducting spectroscopy, laser sensing, or cryogenics, these feedthroughs ensure zero-leak performance without compromising signal integrity.
How to Order Your Custom Configuration:
Because this is a precision-engineered product, please specify the following parameters when ordering:
1. Vacuum Interface (Flange Type):
CF Series (UHV): CF16, CF25, CF35, CF50 (Stainless Steel with Copper Gasket seal).
KF/NW Series (HV): KF16, KF25, KF40, KF50.
Threaded: M12 or custom bolts.
2. Optical Connector Options:
Atmospheric Side: FC/PC, FC/APC, SC, LC, or SMA905.
Vacuum Side: Fixed fiber, ferrule, or custom termination.
3. Fiber Specifications:
Fiber Type: Single-mode (SM), Multi-mode (MM).
Wavelength: Optimized for UV, Visible, or IR spectrums.
Core Diameter: Customizable to your application.
4. Dimensional Requirements:
Vacuum Side Length: Custom internal pigtail length.
Atmospheric Side Length: Custom external jumper/patch cord length.
Channels: From single-fiber units to high-density multi-channel arrays.
Technical Support:
Our engineering team is available to assist with complex configurations.
