LASER CABLE LOW POWER FC/PC – FC/APC

FC fibre optic patch cable adopts quartz optical fibre, double-ended FC/PC connector; The protective Tubing minimises stray light entering the fibre and also reflects the soft bending properties of the fibre, making it suitable for portable and compact instrumentation; The connector is equipped with a dust cap, which prevents dust from contaminating the end face of the ferrule.



Application:

Laser transmission, laser welding, laser cutting, laser coupling, laser diode pigtails, spectral detection, lighting, sensors, data communications, LAN and cable TV, etc.

SPEC:

  • Core Diameter:50um-1000um
  • Wavelength:400-2400nm
  • Numerical Aperture :0.22/0.37
  • Working temperature:-45 -85 °c

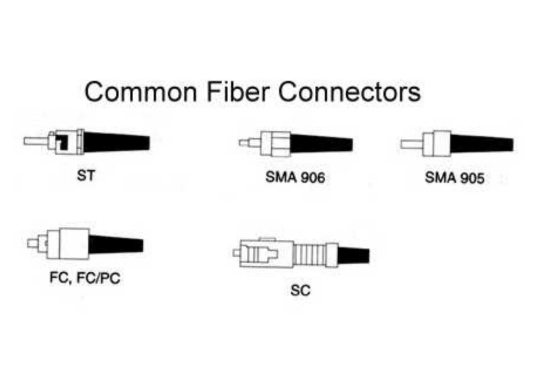

  • Connector: FC/ST/SMA905
  • Length:0.5m/1m/3m/customized
